Coco Peat Dryer

Capacity: 20-400 T/D

Final Moisture: 12%

Total Power: 28-155 Kw

Floor Coverage: 74-400 m2

Get priceOnline chat

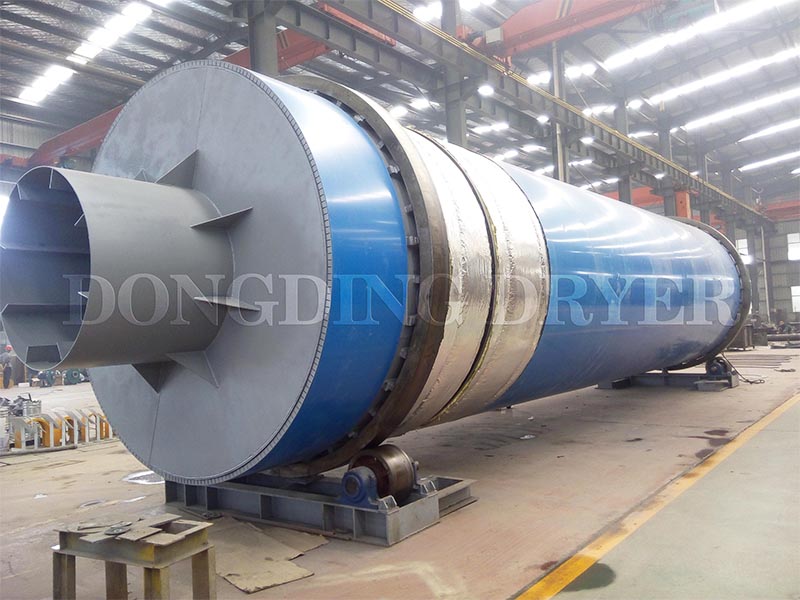

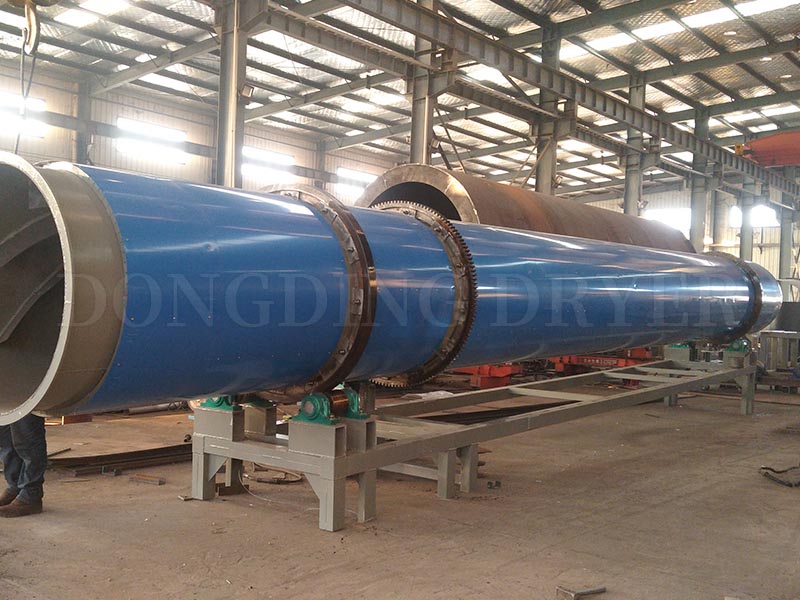

Coco Peat Dryer Introduction

Dongding researched and manufactured Coco Peat Rotary Dryer. This coco peat dryer system is also applied to dry coconut coir, coconut fiber.
After high-temperature treatment.To meet the specific requirements of clients for coco peat dryer machine, offer customized models.
Dongdingmaintein a safe and efficient production process by precise temperature control and scientific sealing technology, clean and environmentally friendly.

Coco Peat Dryer Working Principle

Firstly, coco peat isdehydrated by dehydrator machine (if high water content), then transported to the rotary drum dryer by the belt conveyor. Because of the inclination of drum dryer, material with hot air moves to the end of dryer body,
during which process wet material gets fully contact with the hot air. After drying, most of the dry material is discharged through the belt conveyor.
The left material mixed with dust continue goes into the cyclone dust collector and the bag dust collector in sequence, where the dust will be collected.
Lastly, with the function of induced draft fan, the left material will discharged through the conveyor.

Coco Peat Dryer Advantages

1. Automatic control ensures that the drying process is even and stable.
2. Designed Inner Structure for coco peat. High drying efficiency to 90-95%.
3. Customized Solution. According to the properties of required parameters to change the operating parameters.
4. Designed Lifting Board. Various material use various combinations of circumferential lifting.
5. The system is equipped with PLC system and video monitoring system, with a high degree of automation and simple operation.
6. Multiple Heating Source. Customers can choose the heating source according their situation, we can design the customized solutions.
7. Provide Accessory Parts. Accessory parts quality assured.

Coco Peat Dryer Test Site For Visit Customer


Specifications

Technical Parameter

Specification

Capacity
(T/D)

Initial Moisture
(%)

Final Moisture
(%)

Total Power
(kw)

Floor Area
(m2)

DDGT1210

20-45

35-65

12

28-33

5m*15m

DDGT1412

25-65

35-65

12

34-40

5m*18m

DDGT1615

40-90

35-65

12

45-60

6m*22m

DDGT1918

50-125

35-65

12

51-75

7m*25m

DDGT2218

70-220

35-65

12

60-90

8m*30m

DDGT2523

90-320

35-65

12

95-125

10m*35m

DDGT2925

110-400

35-65

12

110-155

10m*40m


We also provided customized models.
