Zhengzhou Dongding Machinery Co., Ltd.

Fly Ash Dryer

Capacity: 300-2500 T/D
Final Moisture: ≤12%

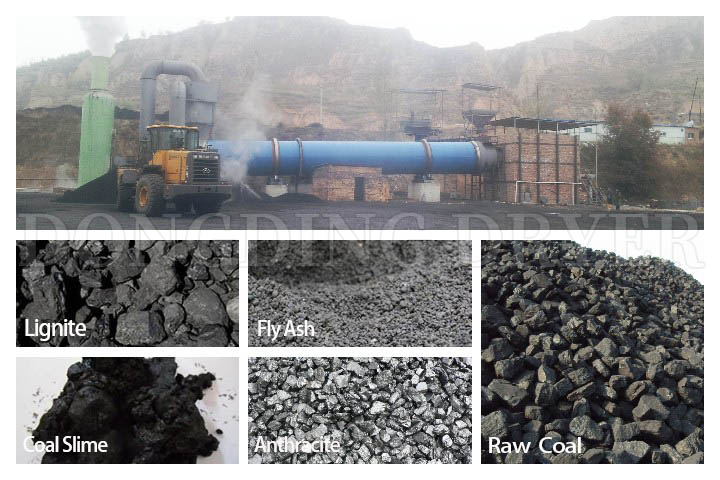

Usage: Suitable for kinds of coal, coal slag, coal slime, fly ash, lignite, etc.

Get priceOnline chat

Fly Ash Dryer Introduction
Fly ash ( coal ash ) is the powder formed after combustion of coal-fired boilers, After been dried, it can be used for cement and concrete,  and can also used  in urban landfill, used as substitute in the laboratory instead of many drugs to carry out various experiments, used for purification of sewage, be made into fertilizer to improved acidic soil, can be used to treat industrial wastewater in environmental protection, etc.
Dongding has established itself as a reliable coal ash dryer manufacturer with many innovative features in the design of coal ash dryer,  Fly ash dryer from Dongding can dry the wet fly ash from moisture content 45% to about 8% in large quantity directly.

Fly Ash Dryer Drying Process Description
Firstly, the raw material transported to the screw conveyor by the belt conveyor, then go into the rotary drum, after drying, most of the dry material will be discharged through the belt conveyor, the left material will go into the cyclone dust collector, where the dust will be collected, with the function of induced draft fan, the left material will discharged through the conveyor.


Fly Ash Dryer Running Video

Fly Ash Dryer Advantages

◆ Low outlet temperature, long lifetime of dust cleaning system;
◆ Adopt new type lifting boards, and the output moisture content can be adjusted as customer's demand;
◆ High degree of automation, simple operation, stable working;
◆ Adopt gear transimission,  small transimission power needed;
◆ Broad fuel choice: coal, diesel, natural gas, waste wood, etc.

What We Can Assure Our Clients?
1, Fully technology support, free factory design and reasonable drying plant layout.
2,1 year guarantee.
3,100% carry out as contract.
4, We can send engineer to oversea to install at site.
5, Reasonable price and use good raw materials.


Specifications

Fly Ash Rotary Dryer Technical Parameter

Specification

Capacity
(T/D)

Initial Moisture
(%)

Final Moisture
(%)

Total Power
(kw)

Floor Area
(m2)

DDMG1918

300±10

25±5

≤12

109

7m*25m

DDMG2218

500±30

25±5

≤12

128

8m*30m

DDMG2520

700±30

25±5

≤12

240

8m*30m

DDMG2822

1000±30

25±5

≤12

400

8m*40m

DDMG3024

1200±30

25±5

≤12

480

12m*50m

DDMG3428

1500±30

25±5

≤12

600

12m*60m

DDMG3830

1800±30

25±5

≤12

800

16m*70m

DDMG4032

2000±30

25±5

≤12

1000

18m*70m

DDMG4238

2500±30

25±5

≤12

1200

20m*80m


We can also offer customized models according to your needs
