Zhengzhou Dongding Machinery Co., Ltd.

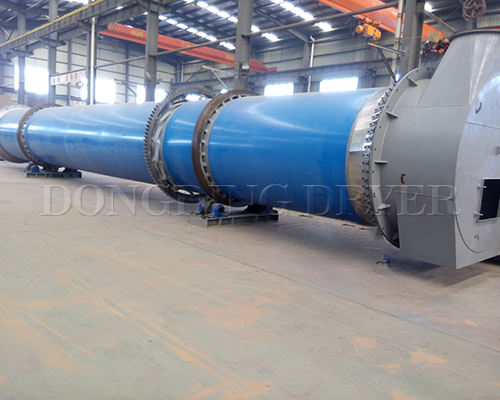

Potash Feldspar Rotary Dryer

Capacity: 3-20 T/H

Initial Moisture: 20±3

Final Moisture: ≤10

Total Power: 57-109 Kw

Get priceOnline chat

Overview of Potash Feldspar Rotary Dryer

These mineral raw materials because of long-term deep buried in the ground, containing a certain amount of internal moisture. So the initial moisture needs the rapid drying dehydration treatment, to meet the industry standards. Zhengzhou Dongding Drying Equipment Co., Ltd. developed a series of mineral dryer, which are very good solution to this problem. The production line uses high temperature drying process, not only greatly reducing the operating costs, but improving the overall economic benefits.

Potash Feldspar Drying Machine Working Principle

Firstly, wet material is crushed by the crushing machine, then transported to the rotary drum dryer bythe belt conveyor. Because of the inclination of drum dryer, material with hot air moves to the end of dryer body, during which process wet material gets fully contact with the hot air. After drying, most of the dry material is discharged through the belt conveyor. The left materials mixed with dust continue go into the cyclone dust collector and the bag dust collector in sequence, where the dust will be collected. Lastly, with the function of induced draft fan, the left material will discharged through the conveyor.

Features of Potash Feldspar Drying Machine

1. Large processing capacity, less fuel consumption, low drying costs.

2. Downstream drying mode, hot air and wet materials are from the same side into the dryer, obtaining a high evaporation intensity and high thermal efficiency.

3. New feed and discharge device, eliminating the feeding blockage, discontinuous, uneven and recharge, reducing the load of dust removal system.

4. New internal structure, eliminating the adhesion phenomenon of the inner wall.

5. Wide application. The system is mainly suitable for materials with high water content, fine granularity and large viscosity.

Specifications

Specification of Rotary Drum Dryer

Specification

Capacity
(T/D)

Initial Moisture
(%)

Final Moisture
(%)

Total Power
(kw)

Floor Area
(m2)

DDMG1918

300±10

25±5

≤12

109

7m*25m

DDMG2218

500±30

25±5

≤12

128

8m*30m

DDMG2520

700±30

25±5

≤12

240

8m*30m

DDMG2822

1000±30

25±5

≤12

400

8m*40m

DDMG3024

1200±30

25±5

≤12

480

12m*50m

DDMG3428

1500±30

25±5

≤12

600

12m*60m

DDMG3830

1800±30

25±5

≤12

800

16m*70m

DDMG4032

2000±30

25±5

≤12

1000

18m*70m

DDMG4238

2500±30

25±5

≤12

1200

20m*80m


We also provided customized models.
